Tileable WC flush plate for concealed cistern, HB-U Frame mounting kit | NEQUIID
Mounting kit for creating a tileable WC flush plate. NEQUIID HB-U Frame is a universal platform designed for concealed cistern systems.
Important: compatibility and the required adapter modules are explained below.

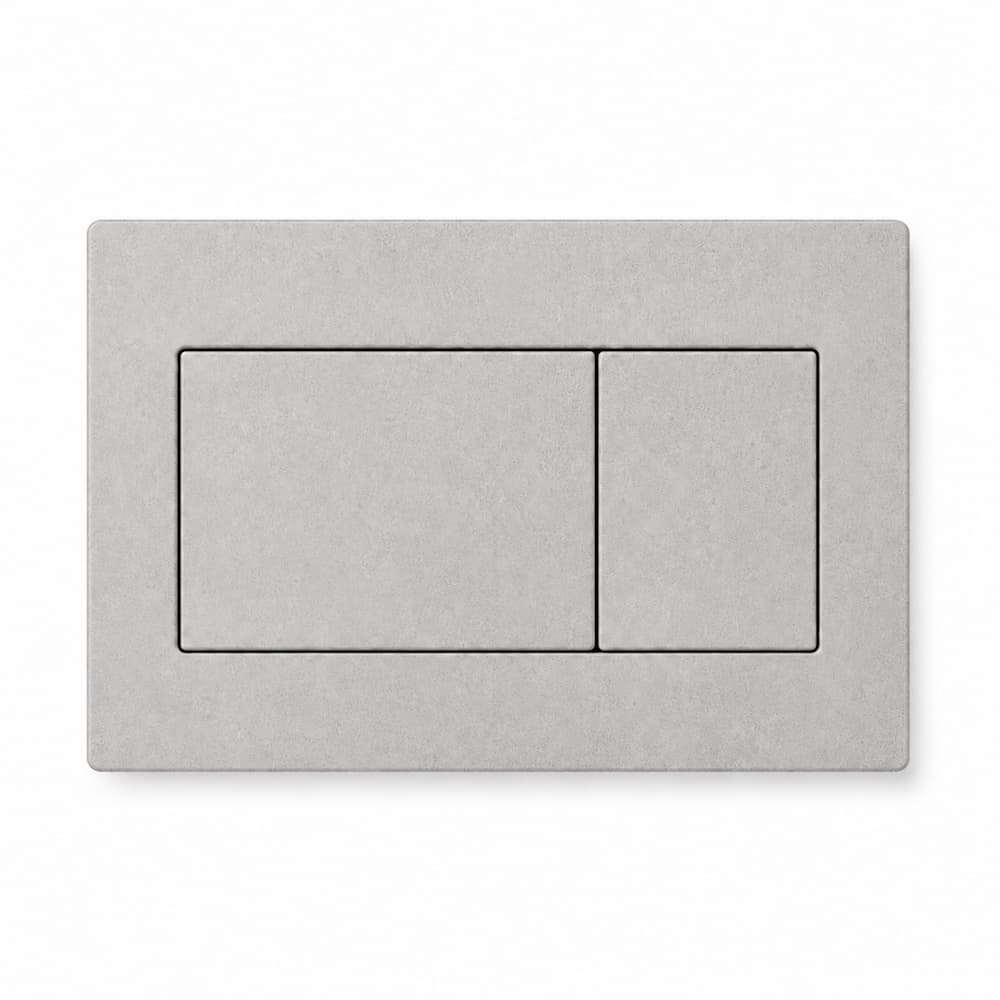

NEQUIID HB-U is a universal frame platform for creating a hidden tileable WC flush plate. The kit is designed for concealed cistern systems and replaces the standard external plastic flush plate with a solution integrated into the wall finish.
This is not a ready-made tiled panel or a decorative cover. The kit includes the assembled mechanism and cutting template; the visible front part is made separately by the installer from the material used in the project.
Key features of the HB-U Frame system
The frame version gives more freedom in the shape of the flush buttons: they can be square, rectangular, narrow rectangular, round or another custom shape. At the same time, making this front part requires high precision and experience, because several separate elements must be carefully cut from tile or porcelain stoneware.
Note: the frame version requires precise preparation of the front part and work by an experienced installer. When manually cutting hard porcelain stoneware, stone or patterned materials, the risk of chipping and fitting errors increases. For a clean result, waterjet cutting is recommended. The cutting file can be downloaded from the instruction.
Compatibility with concealed cistern systems
The platform is universal, but the connection depends on the mechanics of the specific concealed cistern system: the position of the actuation points, the diameter of the push rods, the thread type and the way the movement is transferred.
- For standard mechanical systems, a set of Ø8 / Ø10 mm push rods is usually required. It is purchased separately from the Componente și accesorii HB category.
- For pneumatic, cable-operated or non-standard systems from Grohe, Valsir, Villeroy & Boch and other manufacturers, a separate adapter module may be required. It is purchased separately from the Componente și accesorii HB category.
If you are not sure about compatibility, contact NEQUIID in the most convenient way for you before purchasing and prepare the brand name and exact model of your concealed cistern system.
Technical installation requirements
Rigid base: for plasterboard structures, at least two layers of moisture-resistant plasterboard must be used. Installation on a single layer is not recommended, as it may cause movement in the mechanism, incorrect button operation and a risk of damaging the finish.
Safe radius: the NEQUIID hidden systems line uses the R4 corner standard. Sharp 90° internal corners are not used as a standard production option, because the 4 mm radius reduces the risk of microcracks, chipping and stress concentration in the cutout corners.
Frequently Asked Questions
Is this a finished, ready-tiled flush plate?
No. This is a mounting kit. The front part is made separately by the installer from tile, porcelain stoneware or another material used in your project.
Is the ceramic tile included in the package?
Nu. Gresia, faianța, porțelanul, piatra, alte materiale de finisaj și lucrările de montaj nu sunt incluse în pachet.
Are push rods and adapters included in the package?
No. Push rods and adapter modules are purchased separately, because they are selected according to the exact model of the concealed cistern system.
How do I know what needs to be purchased separately?
For classic mechanical systems, a set of Ø8 / Ø10 mm push rods is usually required. For Grohe, Valsir, Villeroy & Boch systems and other solutions with different mechanics, an adapter module may be required. Contact NEQUIID, provide the installation model or send a photo of the original flush plate, and we will recommend the right set.
What color is the mechanism?
The standard color of the mechanism body is black. After final installation, the mechanism is hidden behind the finishing material and does not remain a visible decorative part.
What shape are the outer corners of the panel?
The NEQUIID standard production format uses R4 corners. This format keeps the geometry clean and reduces the risk of chipping compared with sharp 90° corners.
Can the installation box be mounted on a single layer of plasterboard?
No. At least two layers of moisture-resistant plasterboard are required for a rigid base, correct installation depth and proper button operation.
Can the panel be made with a different corner radius?
Yes, changing the corner radius is possible as a custom made-to-order solution.
